Functional Programming with Pyomo#
Pyomo, an abbreviation for Python Optimization Modeling Objects, might not appear to be a suitable choice for functional programming. Functional programming, after all, relies on pure, stateless functions that operate on immutable data. Pyomo’s workflow, instead, is based mutating a model’s state using transformations and solvers. These approaches would seem to be fundamentally incompatible at first glance.
The objective of this notebook is to demonstrate how encapsulating Pyomo transformations and solvers within relatively pure functions, along with a simple PyomoMonad, can create a functional programming environment for optimization that supports a flexible and expressive optimization workflows.
Pyomo and Optimization Workflows#
A typical Pyomo workflow begins with a problem statement and then proceeds through a series of steps that, coupled with inputs of data, model transformations, and solvers, results in a solution.
A mathematical model is created from a problem statement and model of the available data.
A Python code is prepared that can read relevant data and generates an instance of a Pyomo ConcreteModel.
Optional transformations may be applied to convert the model into a solvable form.
A solver is selected and applied to compute a solution and load into the model object.
A suitable solution report is extracted from the solved model object.
Given the range of possible problem types, modeling choices, transformations, and solvers, this can be complex workflow with opportunities for generating exceptions, and the need to log and display intermediate results.
This notebook implements the Pyomo workflow by applying abstractions from functional programming and category theory. A simple PyomoMonad is proposed to enable the utilization of pure functions at each stage, from model construction to the presentation of the optimal solution.
Functional Programming and Monads#
This section provides a brief and generic introduction to functional programming and monads. Readers familiar with these topics can skip forward to the section where these concepts are applied to the Pyomo workflow.
Pure functions#
A characteristic feature of functional programming is the use of “pure” functions. Pure functions always returns the same result for identical arguments with no side effects such as changing non-local variables or call-by-reference arguments, printing, or data base interactions. Because there are no side effects, there is no change in state between invocations of a pure function. All results of calling a pure function are restricted to the result returned by the function.
There are important practical advantages for pure function that result from from these restrictions. For example, pure functions are generally short with a single purpose, they can be executed concurrency because there is no common state, are easily tested, and allow recursion. These advantages make pure functions useful building blocks for complex applications.
Python lambda functions are examples of pure functions. Here we create a series of three lambda functions:
trimthat strips white space from a string,upperthat converts a string to upper case,exclaimthat appends an exclamation symbol.
# pure functions
trim = lambda s : s.strip()
upper = lambda s : s.upper()
exclaim = lambda s : s + "!"
These can be nested in various combinations and applied to a string.
exclaim(upper(trim(" get off my lawn")))
'GET OFF MY LAWN!'
Function composition#
A composition of these functions is useful for combining the effects of these functions. Given two functions, \(f\) and \(g\),
the composition of \(f\) and \(g\) is defined as
where
# function composition
compose = lambda f, g : lambda x : g(f(x))
To demonstrate, a new function enthuse is created from the composition of trim, upper and exclaim.
enthuse = compose(compose(trim, upper), exclaim)
enthuse(" get off my lawn")
'GET OFF MY LAWN!'
Composition is associative. Given three functions
then
print(compose(compose(trim, upper), exclaim)(" get off my lawn"))
print(compose(trim, compose(upper, exclaim))(" get off my lawn"))
GET OFF MY LAWN!
GET OFF MY LAWN!
map, filter, and functools.reduce#
The functions map, filter, and functools.reduce extend the utility of pure functions. Note that map actually returns an iterator, so list is required to apply the function to every element of the data given in map.
list(map(enthuse, ["hello", "go away", " get off my lawn"]))
['HELLO!', 'GO AWAY!', 'GET OFF MY LAWN!']
reduce applies a function of two values recursively to a tuple, list, or iterator to reduce it to a single cumulative value. This provides a convenient means to construct of composition of two or more functions.
from functools import reduce
enthuse = reduce(compose, (trim, upper, exclaim))
enthuse(" get off my lawn")
'GET OFF MY LAWN!'
Why monads?#
Composing pure functions is a highly expressive and flexible style of programming, but consider what happens when something happens that causes a change of state. In the following cell, for example, an exception is generated when a composite function is applied to an input with the wrong type.
# this will produce an error message
try:
enthuse(2)
except Exception as e:
print(e)
'int' object has no attribute 'strip'
This may not be a desirable result for a more complex workflow. This is where monads fit in.
A monad wraps the inputs and outputs of a pure function into a structure that can perform additional computation. There two basic methods for monads:
unit which wraps a value into a monad.
bind which chains pure functions together.
The Maybe monad#
The following cell implements a simple Maybe container for a value that may or may not be present. A successful bind wraps the function’s result. If the function raises an exception, bind returns a container with value=None and contains_value=False; later binds pass that failure along without calling their functions. The flag distinguishes a missing value from a successful function that happens to return None.
class Maybe:
def __init__(self, value=None, contains_value=True):
self.value = value
self.contains_value = contains_value
def bind(self, func):
if not self.contains_value:
return Maybe(None, False)
try:
result = func(self.value)
return Maybe(result)
except Exception:
return Maybe(None, False)
def __call__(self):
return self.value
To see how this works, let’s create an instance of Maybe and bind the composite function enthuse.
Maybe(" get off my lawn").bind(enthuse)()
'GET OFF MY LAWN!'
The important thing to notice is that the pure functions previously defined can be applied and composed with no changes. All of the boilerplate code need to check for errors has been encapsulated in the Maybe monad.
Maybe(" get off my lawn").bind(trim).bind(upper).bind(exclaim)()
'GET OFF MY LAWN!'
Why do this? One benefit of Maybe is that we now have a way to avoid or capture error messages produced when from a composition of functions.
# this will not generate an error
Maybe(2).bind(enthuse)()
The Failure monad#
The Failure monad is designed to handle exceptions. Without modifying any of the previously defined functions, Failure captures the first exception and pushes it to the end of a chain of calculations. All of the boilerplate is in the monad, not the functions.
class Failure:
def __init__(self, value=None, status=None):
self.value = value
self.status = status
def bind(self, f):
if self.status is not None:
return Failure(None, self.status)
try:
result = f(self.value)
return Failure(result, None)
except Exception as e:
return Failure(None, e)
def __call__(self):
return self.value
Failure(" get off my lawn").bind(enthuse)()
'GET OFF MY LAWN!'
Failure(2).bind(enthuse).status
AttributeError("'int' object has no attribute 'strip'")
A Pyomo monad#
We can use the same idea to organize a Pyomo workflow. A container holds a model, a status and an optional reporting function. Each bind applies one step to the current model and wraps the result. If a step raises an exception, the container records it and skips subsequent steps, so an unsuccessful solve does not flow into a report that expects solution values.
The implementation has three parts:
Solver and transformation wrappers clone the input model before changing it. This leaves the caller’s model intact and makes it easier to reuse the same starting point in several workflows.
PyomoMonad connects these steps and carries the first exception in its
status. A failed workflow displays that exception when called.Model builders return a PyomoMonad with an optional effect: a function that produces a report or plot from the resulting model. Binding performs the model operations; calling the container executes the effect, or returns the model when no effect is supplied.
Cloning controls mutation of the input model, but does not make a solver mathematically pure: results can depend on solver settings and numerical tolerances, and an external solver may write logs or files. Error capture here covers the bound model-processing steps; an exception raised by the final reporting effect propagates normally.
Import Pyomo and solvers#
The examples use the open-source solvers CBC and Ipopt. On Colab we install them through IDAES and add the downloaded binaries to the current session’s search path. For a local run, install Pyomo and make both solver executables available first. The wrapper below checks the selected solver when a workflow uses it.
import sys, os
if "google.colab" in sys.modules:
%pip install -q pyomo idaes-pse
!idaes get-extensions --to ./bin
os.environ["PATH"] += os.pathsep + os.path.abspath("bin")
import pyomo.environ as pyo
import pandas as pd
Wrapping Pyomo solvers and transformations as functions#
Each wrapper returns a function that accepts a model, clones it, applies the requested operation and returns the clone. With no operation specified, it returns an unchanged clone. The solver wrapper also checks termination before returning a solution; otherwise, the monad captures the failure instead of passing an unsuccessful result to the next step.
# given a string specification, returns a solver created by pyomo.SolverFactory
def solver(s=None):
if s is None:
_solver = lambda model : model.clone()
else:
def _solver(model):
new_model = model.clone()
selected_solver = pyo.SolverFactory(s)
if not selected_solver.available():
raise RuntimeError(f"Solver {s} is not available.")
results = selected_solver.solve(new_model)
pyo.assert_optimal_termination(results)
return new_model
return _solver
# given a string specification, returns a transformer created by pyomo.TransformationFactory
def transformer(s=None):
if s is None:
_transformer = lambda model : model.clone()
else:
def _transformer(model):
new_model = model.clone()
pyo.TransformationFactory(s).apply_to(new_model)
return new_model
return _transformer
PyomoMonad#
This class binds functions that accept and return a model. It preserves the reporting effect after a successful step and records the exception after a failed step. Once an error is recorded, later steps are skipped. Calling a successful container runs its effect or returns its model; calling a failed one prints the captured exception. The >> operator is overloaded as a compact alternative to .bind(...).
class PyomoMonad:
"""A simple monad class for handling Pyomo operations with error handling.
This class is designed to simplify Pyomo operations by providing a way to
handle errors and chaining operations together. The bind method is used to
chain operations, and the __call__ method is used to execute the monad.
"""
def __init__(self, value=None, effect=None, status=None):
"""
Initialize the PyomoMonad instance.
:param value: The value to be processed by the monad
:type value: Any
:param effect: A function to be applied on the value
:type effect: callable, optional
:param status: The current status of the monad, used for error handling
:type status: Any, optional
"""
self.value = value
self.status = status
self.effect = effect
def bind(self, func):
"""Bind a function to the current monad instance.
:param func: The function to be bound to the current monad
:type func: callable
:return: A new PyomoMonad instance
:rtype: PyomoMonad
"""
if self.status is not None:
return PyomoMonad(None, self.effect, self.status)
try:
result = func(self.value)
return PyomoMonad(result, self.effect, self.status)
except Exception as e:
return PyomoMonad(None, lambda value, error=e: print(error), status=e)
def __call__(self):
"""Execute the monad by calling its effect if it exists, or return its value.
:return: The result of executing the monad's effect or its value
:rtype: Any
"""
if self.effect is not None:
return self.effect(self.value)
else:
return self.value
def __rshift__(self, func):
"""Implement the '>>' operator for chaining operations.
:param func: The function to be bound to the current monad
:type func: callable
:return: A new PyomoMonad instance
:rtype: PyomoMonad
"""
return self.bind(func)
Example: Production Planning#
products = {
"U": {"price": 270, "demand": 40},
"V": {"price": 210, "demand": None},
}
resources = {
"M": {"price": 10, "available": None},
"labor A": {"price": 50, "available": 100},
"labor B": {"price": 40, "available": 80},
}
processes = {
"U": {"M": 10, "labor A": 2, "labor B": 1},
"V": {"M": 9, "labor A": 1, "labor B": 1},
}
def production_model(products, resources, processes):
m = pyo.ConcreteModel()
m.PRODUCTS = pyo.Set(initialize=list(products.keys()))
m.RESOURCES = pyo.Set(initialize=list(resources.keys()))
# create decision variables
m.x = pyo.Var(m.RESOURCES, bounds=lambda m, r: (0, resources[r]["available"]))
m.y = pyo.Var(m.PRODUCTS, bounds=lambda m, p: (0, products[p]["demand"]))
# create expressions
m.revenue = pyo.Expression(expr=sum(products[p]['price'] * m.y[p] for p in m.PRODUCTS))
m.cost = pyo.Expression(expr=sum(resources[r]['price'] * m.x[r] for r in m.RESOURCES))
# create objective
@m.Objective(sense=pyo.maximize)
def profit(m):
return m.revenue - m.cost
# create indexed constraint
@m.Constraint(m.RESOURCES)
def materials_used(m, r):
return sum(processes[p][r] * m.y[p] for p in m.PRODUCTS) <= m.x[r]
# create a call back to return solution
def report(m):
x = pd.Series({r: m.x[r].value for r in m.RESOURCES})
y = pd.Series({p: m.y[p].value for p in m.PRODUCTS})
return m.profit(), x, y
# return a PyomoMonad
return PyomoMonad(m, effect=report)
profit, x, y = production_model(products, resources, processes).bind(solver('cbc'))()
print(profit)
display(x)
display(y)
2400.0
M 740.0
labor A 100.0
labor B 80.0
dtype: float64
U 20.0
V 60.0
dtype: float64
Example: Batch Reactor#
The following example demonstrates a somewhat longer workflow where Pyomo.DAE is used to transform a set of differential equations into a nonlinear optimization problem that can be solved with ipopt. The model output includes a plot and a few key model values.
Problem statement#
Consider a sequence of two chemical reactions
that take place in batch reactor under isothermal conditions. The feed initially consists of pure \(A\). The goal is to maximize the production of \(B\). Ultimately it is necessary to account for the turnaround time needed between successive batches, but as a first attempt we will settle for finding the maximum achievable concentration of \(B\), and time required to achieve that concentration.
Mathematical model#
Let \(a\) and \(b\) refer to the concentrations of \(A\) and \(B\), respectively. Then the problem is to find \(t_f\) where
Rescaling time so that \(t' = t/t_f\) yields the more tractable optimization problem
where \(t_f\) is now embedded as a decision variable within the model, and the integration is now over a fixed interval \(t' \in [0, 1]\).
Pyomo model builder#
import pyomo.environ as pyo
import pyomo.dae as dae
import pandas as pd
def ode_model_builder(k1=0.5, k2=0.1):
m = pyo.ConcreteModel()
m.t = dae.ContinuousSet(bounds=(0, 1))
m.a = pyo.Var(m.t)
m.b = pyo.Var(m.t)
m.tf = pyo.Var(domain=pyo.NonNegativeReals)
m.dadt = dae.DerivativeVar(m.a)
m.dbdt = dae.DerivativeVar(m.b)
@m.Objective(sense=pyo.maximize)
def max_b(m):
return m.b[1]
@m.Constraint(m.t)
def odeA(m, t):
return m.dadt[t] == -k1 * m.tf * m.a[t]
@m.Constraint(m.t)
def odeB(m, t):
return m.dbdt[t] == k1 * m.tf * m.a[t] - k2 * m.tf * m.b[t]
m.a[0].fix(1)
m.b[0].fix(0)
def report(m):
df = pd.DataFrame.from_dict({
't' : [m.tf() * t for t in m.t],
'A' : [m.a[t]() for t in m.t],
'B' : [m.b[t]() for t in m.t],
})
ax = df.plot(x='t', y=['A', 'B'], grid=True, xlabel="time", ylabel="concentration",
title=f"k1 = {k1:0.3f}, k2 = {k2:0.3f}")
ax.plot(m.tf(), m.b[1].value, '.', ms=10)
return (m.tf.value , m.b[1].value)
return PyomoMonad(m, effect=report)

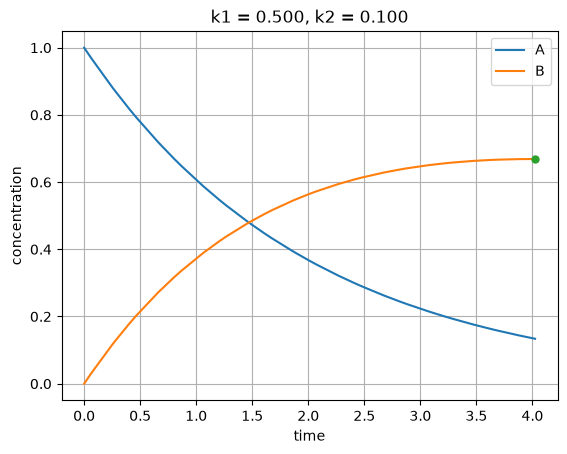

Executing a workflow#
A typical use of PyomoMonad.
soln = ode_model_builder().bind(transformer('dae.collocation')).bind(solver('ipopt'))
tf, b = soln()
print(f" tf = {tf:0.3f}")
print(f"b(tf) = {b:0.3f}")
tf = 4.024
b(tf) = 0.669
Alternative syntax#
Show how the workflow functions can be composed into a single operation.
collocation = transformer('dae.collocation')
ipopt = solver('ipopt')

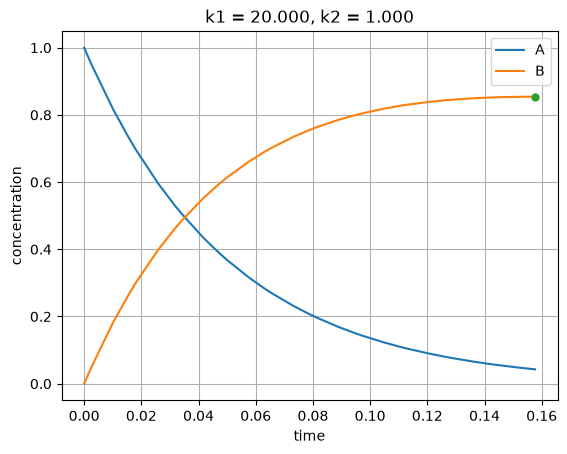

(soln := ode_model_builder(20, 1) >> collocation >> ipopt)()
(0.15767005981401444, 0.8541314382648227)
Composition#
Show how a workflow can be written as a composition of functions.
ode_solver = compose(collocation, ipopt)
(soln := ode_model_builder().bind(ode_solver))()
(4.023594361612316, 0.6687402900841761)
